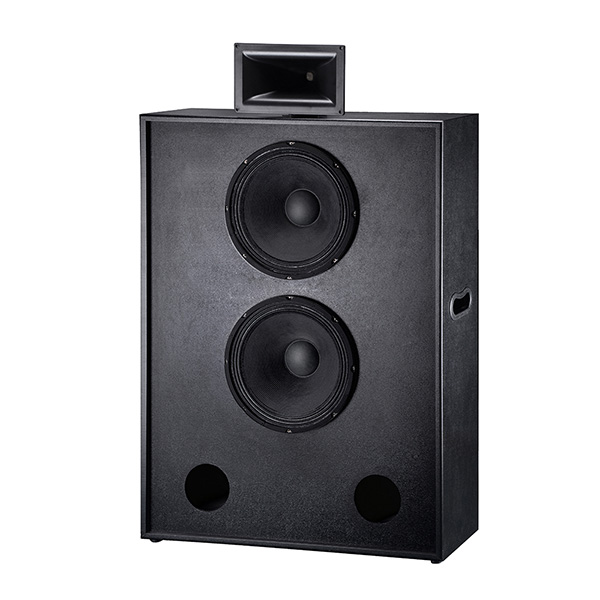

CMS-152MV

Ultra-thin two-way cinema loudspeaker
FEATURES
SPECIFICATION
DOWNLOADS
Larger Images

FEATURES


●   Optimized 2-way speaker system for smaller cinemas—up to 11 m in length

●   Passive crossover requires only one amplifier channel

●   CMS-152MV 1x15-inch (380mm) woofer with 2.5-inch (64 mm) voice coil

●   1.75-inch (44 mm) voice coil HF compression driver

●   Shallow profile with depth 238mm for minimum behind-screen

    space  requirements

●   Bonding post connectors


SPECIFICATION


     Model     CMS-152MV
     Speaker Unit     15"x1 + 1.75"x1
     Frequency Response       40Hz ~ 20kHz
     Impedance

     8Ω

     Rated Output Power

     300W

     Sensitivity

     99dB

     HxV Angle     90° x 40°
     Crossover

     1.5kHz

     Distortion     ≤1%
     Dimensions (WxDxH)

     649 x 238 x 1097 mm

     Net Weights

     35.8kg

Downloads
Filename Size Uploaded
Product drawing-DWG file
CMS-152MV 1.26MB August 2023
