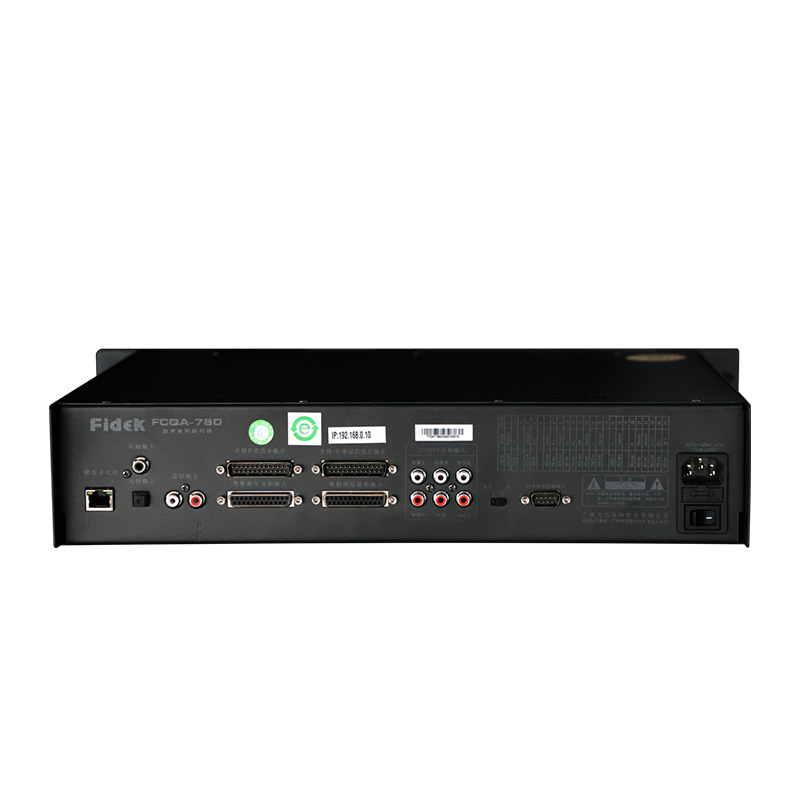

FCQA-780

FEATURES

●   Multi connection: available for accessing and controlling simultaneously and

    in real time by multiple computers  (CS mode)or network system devices (BS).

    Previous version: only with a TCP network port 1001.  If the projection server

    keeps connected with it in real time, other network systems or devices cannot

    communicate with it. For example, the TMS system cannot provide real-time

    feedback on the working status and volume status of the decoder.

●   Input mode: Sync digital input (DB25), SPDIF (non-sync), Analog input (Db25),

    CD/DVD Line Inputs (3.5mm TRS), XLR Mic/Line input (for test), microphone input (for call)

●   Data port output: DB 25 female, monitor output: RCA

●   5.1 digital audio processor for 1.3K and 2K movie

●   Support direct, two frequency mode, to meet the needs of medium and small film projects

●   High resolution DSP technology with 96KHz/24bit D/A conversation

●   Supporting setup data backup via individual card for easy operation

●   Crossover frequency,31-band graphic EQ, parametric, equalization,

●   polarity, delay and gain with precise adjustment for each speaker in system.

●   Support for speaker parameter preset

●   Independent pink noise generator, easy to install and debug

●   Cover all technical parameters of FD and FDM series loudspeakers in

    system for a convenient debugging process

●   Restore the setup automatically to the working state the last shutdown
